Concrete Mixer Truck Troubleshooting And Emergency Handling Guide

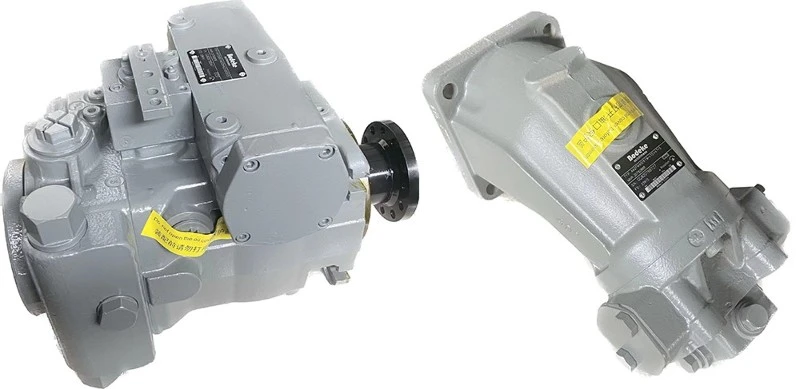

Hydraulic pump set(A4VTG90)

**1. Engine Failure**
**1.1 Failure to Start or Sudden Stalling**
- **Possible Causes**: Dead battery, clogged fuel system, sensor malfunction.
- **Emergency Measures**:
- Check battery voltage (if below 12V, jump-start or replace);
- Clean fuel filter and bleed air from fuel lines;
- Use a diagnostic tool to read error codes (e.g., crankshaft position sensor failure).

**1.2 Loss of Power/Black Smoke**
- **Possible Causes**: Turbocharger failure, clogged fuel injectors, dirty air filter.
- **Solutions**:
- Clean or replace the air filter;
- Check for leaks in turbocharger piping;
- Remove and ultrasonically clean fuel injectors.

---

 **2. Hydraulic System Failure**
**2.1 Mixing Drum Not Rotating**
- **Possible Causes**: Hydraulic pump failure, motor damage, blocked oil lines.
- **Emergency Measures**:
- Check hydraulic oil level and quality (replace if cloudy/foamy);
- Test pump pressure (repair or replace if pressure is insufficient);
- Manually rotate the motor coupling to check for jamming.

**2.2 Hydraulic Oil Overheating (>80°C)**
- **Possible Causes**: Clogged radiator, internal oil leakage, degraded oil.
- **Solutions**:
- Flush radiator fins;
- Replace with high-temperature hydraulic oil (VG46 or higher);
- Check if relief valve pressure is set too high.

---

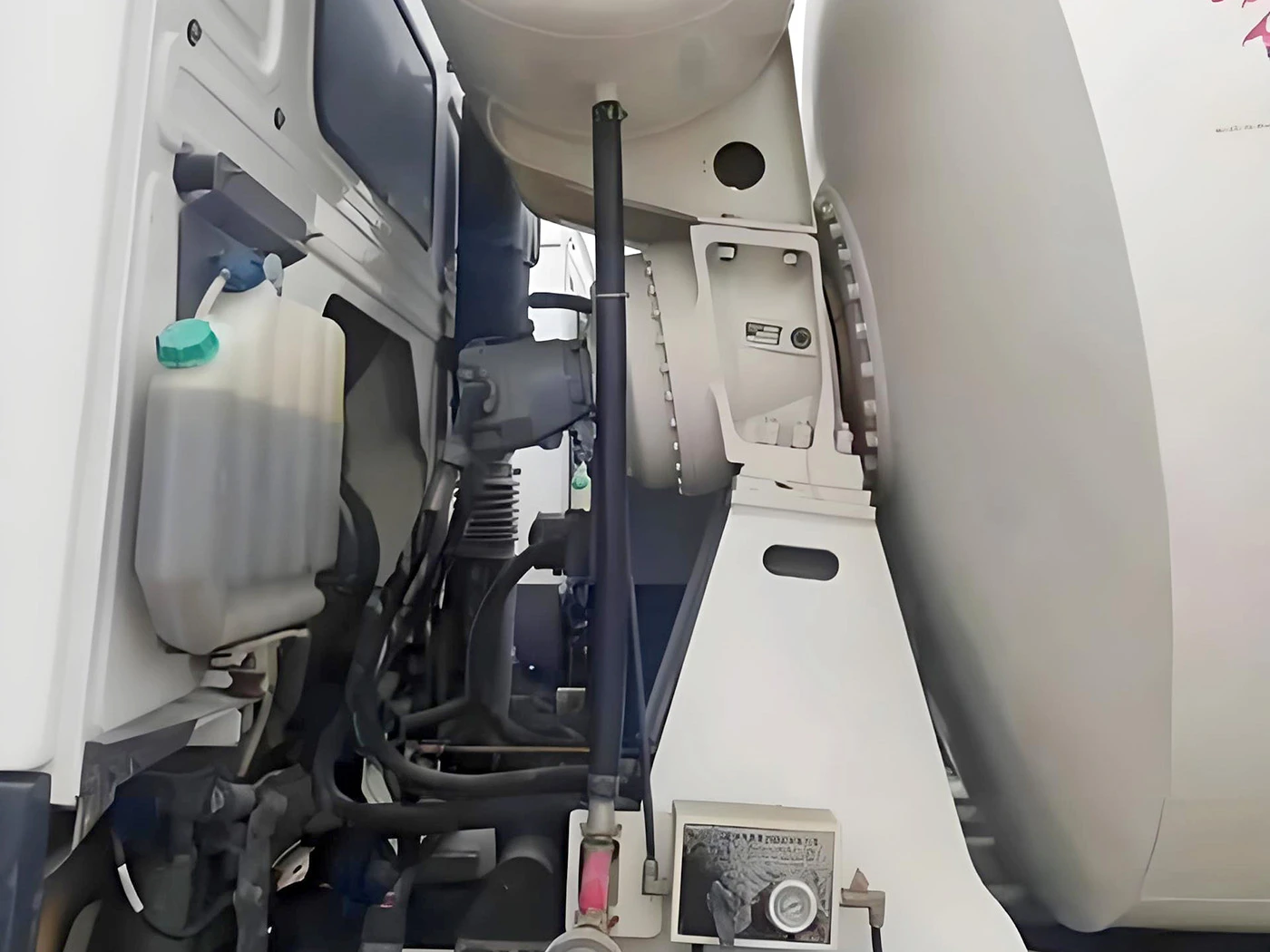

 **3. Mixing Drum & Drivetrain Failure**
**3.1 Abnormal Noise or Leakage**
- **Possible Causes**: Worn support rollers, damaged gearbox gears, aged seals.
- **Emergency Measures**:
- Tighten loose roller bolts;
- Temporarily patch leaks (using fast-curing epoxy resin);
- Inspect gearbox oil for metal shavings.

**2.2 Severe Driveshaft Vibration**
- **Possible Causes**: Worn universal joint, bearing failure, imbalance.
- **Solutions**:
- Replace the universal joint cross shaft;
- Rebalance the driveshaft;
- Apply high-temperature grease.

**4. Electrical System Failure**
**4.1 Dashboard Warning Lights (ABS/Oil Pressure)**
- **Possible Causes**: False sensor readings, short circuits, ECU failure.
- **Emergency Measures**:
- Restart the vehicle to check if the warning persists;
- Inspect sensor connectors for oxidation;
- Read flash codes by shorting the diagnostic port (e.g., Cummins engines).

**4.2 Lighting/Wiper Malfunction**
- **Possible Causes**: Blown fuse, relay failure, poor grounding.
- **Solutions**:
- Replace the corresponding fuse according to the wiring diagram;
- Test relay contacts for burn marks;
- Clean corroded grounding points.

---

**5. Preventive Maintenance Recommendations**
1. **Daily Checks**: Hydraulic oil level, tire pressure, drum cleanliness.
2. **Scheduled Maintenance**:
- Replace hydraulic oil filter every 500 hours;
- Clean radiator and fuel tank every 2,000 hours.
3. **Operational Best Practices**:
- Avoid prolonged parking with a full load (prevents concrete hardening);
- Warm up the engine to 50°C before operation in winter.

---

**Industry Trends**:
- **Smart Alerts**: Some newer models feature AI-based failure prediction, providing warnings up to 7 days in advance.
- **Remote Support**: 5G-enabled video calls with manufacturer engineers for real-time troubleshooting.

(Note: For complex issues, consult professional service providers to avoid secondary damage from improper repairs.)
